MU Beta Emulation Headers usage for various PIC MCU types:

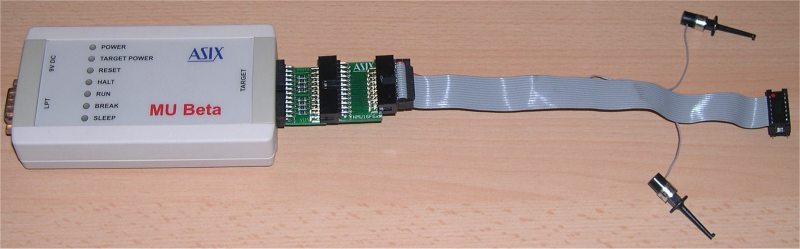

Typical Example of MU Beta Usage with Header

MU Beta + PROTAB + HMU16F6xx + HMU16

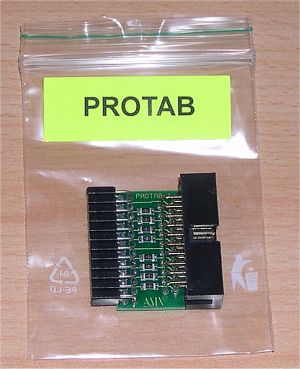

PROTAB - Pin Protector

Enhances MU Beta target connector pin protection. Please use PROTAB whenever possible.

Emulation Headers

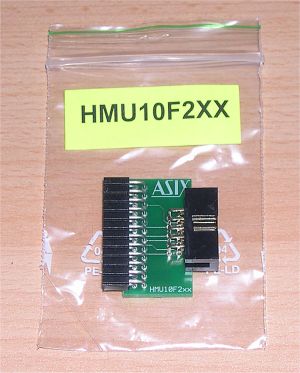

Use HMU10F2xx for PIC10F2xx emulation with the HMU10 cable.

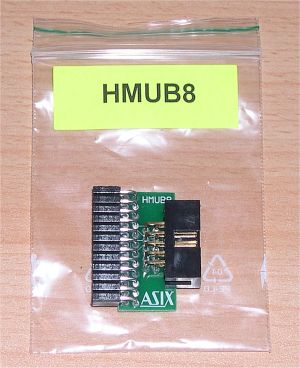

Use HMUB8 for PIC12C50x emulation with the HMU10 cable.

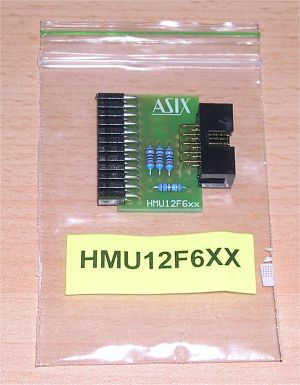

Use HMU12F6xx for PIC12F6xx emulation with the HMU10 cable.

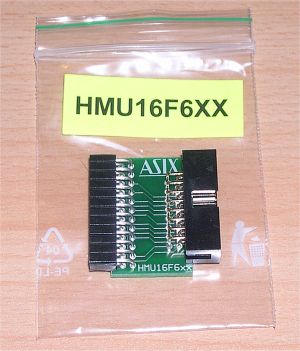

Use HMU16F6xx for PIC16F6xx emulation with the HMU16 cable.

Emulation Header Cables

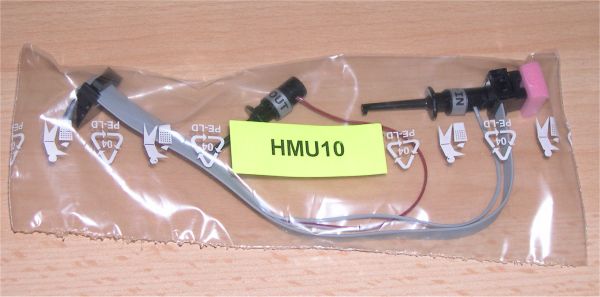

Use the HMU10 cable with HMU10F2xx, HMUB8 and HMU12F6xx headers.

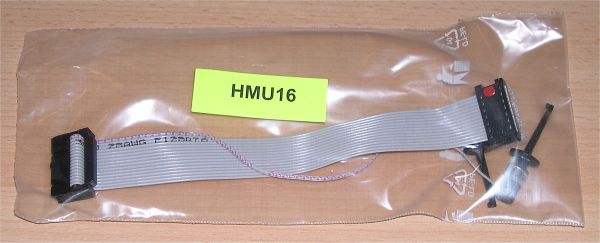

Use the HMU16 cable with the HMU16F6xx header.

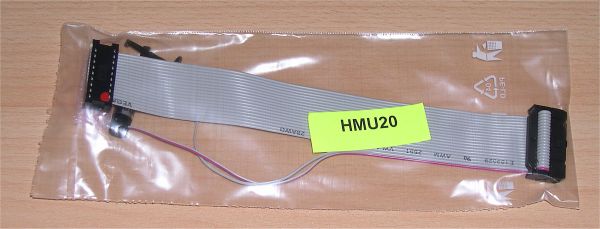

Use the HMU20 cable without any header (except PROTAB pin protector) to emulate the 18-pin parts.
